فلتر حلول المنزل الكامل

نقاص ذكر من اتجاه واحد

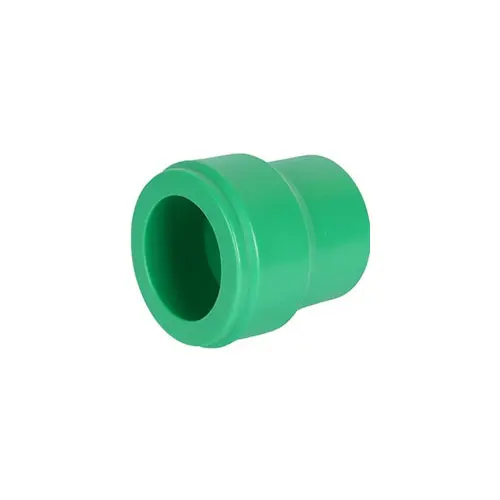

Reducer Socket Fem/Male ACC. To DIN 15874
Art.No	Size	D	d	D1	d1	L	Z
		In mm	In mm	In mm	In mm	In mm	In mm
R1-2520	25/20	29.2	19.2	25	23	39	14.5
R1-3220	32/20	29.2	19.2	32	30	37	14.5
R1-3225	32/25	34.3	24.2	32	30	38	16
R1-4020	40/20	29.9	19.2	40.1	38	46.8	14.5
R1-4025	40/25	34.3	24.2	40.1	38	48.3	16
R1-4032	40/32	42.6	31.1	40.1	38	50.5	18.2
R1-5032	50/32	42.6	31.1	50.2	46.7	54	18.2
R1-11075	110/75	100	74.3	110.3	106.8	73	31.5
