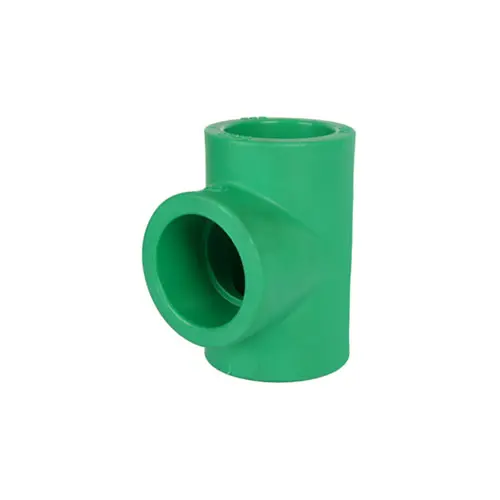

| Equal Tee ACC. To DIN 15874 |
|||||
| Art.No | Size | D | d | L | Z |
| In mm | In mm | In mm | In mm | ||
| T1-20 | Ø20 mm | 29.2 | 19.2 | 25.5 | 14.5 |
| T1-25 | Ø25 mm | 34,3 | 24.2 | 31 | 16 |
| T1-32 | Ø32 mm | 43.3 | 31.1 | 35 | 18 |
| T1-40 | Ø40 mm | 52.6 | 39 | 41.5 | 21 |
| T1-50 | Ø50 mm | 66.8 | 49 | 49.5 | 24 |
| T1-63 | Ø63 mm | 83.2 | 61.9 | 60.5 | 28 |
| T1-75 | Ø75 mm | 100 | 74.3 | 71 | 31.5 |
| T1-90 | Ø90 mm | 120.2 | 89.3 | 79 | 35 |
| T1-110 | Ø110 mm | 147.1 | 109.4 | 97 | 40 |
