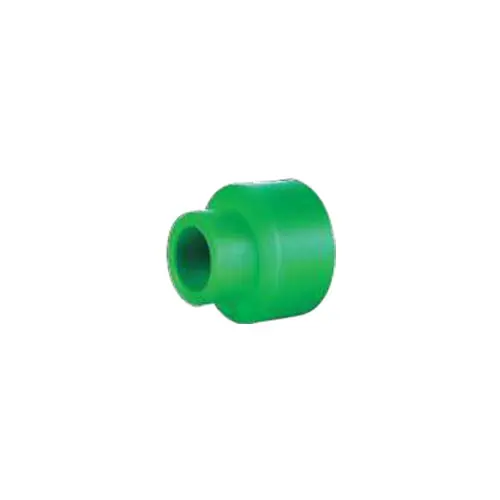

Reducer Socket Female

Reducer Socket Female ACC. To DIN 15874
Art.No	Size	D	d	D1	d1	L	Z
		In mm	In mm	In mm	In mm	In mm	In mm
R2-3225	32/25	43.3	31.3	34.3	24.3	40	18
R2-5025	50/25	66.8	49	34.7	24.2	50	24
R2-5032	50/32	66.8	49	42.6	31.1	56	24
R2-5040	50/40	66.8	49	52.6	39	52.5	24
R2-6325	63/25	83.2	61.9	34.4	24.3	59	28
R2-6332	63/32	83.2	61.9	42.6	31.1	60	28
R2-6340	63/40	83,2	61.9	52.6	39	60.5	28
R2-6350	63/50	83.2	61.9	66.8	49	60.5	28
R2-7532	75/32	100	74.3	42.6	31.1	61.5	31.5
R2-7540	75/40	100	74.3	52.6	39	64,5	31.5
R2-7550	75/50	100	74.3	66.8	49	67.5	31.5
R2-7563	75/63	100	74.3	83.2	61.9	68	31.5
R2-9032	90/32	120.2	89.3	42.6	31.1	75	35
R2-9040	90/40	120.2	89.3	52.6	39.2	76	35
R2-9050	90/50	120.2	89.3	67	49.2	76	35
R2-9063	90/63	120.2	89.3	83.2	61.9	76	35
R2-9075	90/75	120.2	89.3	100	74.3	77	35
R2-11075	110/75	147.1	109.4	100	74.3	87.5	40
R2-11090	110/90	147.1	109.4	120.2	89.3	87.5	40
