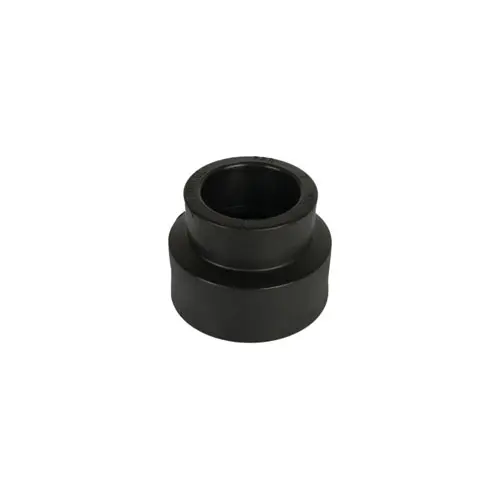

| Reducer Socket UV Female ACC. To DIN 15874 |
|||||||
| Art.No | Size | D | d | D1 | d1 | L | Z |
| In mm | In mm | In mm | In mm | In mm | In mm | ||
| R2UR-3225 | 32/25 | 43.3 | 31.3 | 34.3 | 24.3 | 40 | 18 |
| R2UR-5025 | 50/25 | 66.8 | 49 | 34.7 | 24.2 | 50 | 24 |
| R2UR-6325 | 63/25 | 83.2 | 61.9 | 34.4 | 24.3 | 59 | 28 |
| R2UR-6332 | 63/32 | 83.2 | 61.9 | 42.6 | 31.1 | 60 | 28 |
| R2UR-6340 | 63/40 | 83.2 | 61.9 | 52.6 | 39 | 60.5 | 28 |
| R2UR-6350 | 63/50 | 83.2 | 61.9 | 66.8 | 49 | 60.5 | 28 |
| R2UR-7532 | 75/32 | 100 | 74.3 | 42.6 | 31.1 | 61.5 | 31.5 |
| R2UR-7550 | 75/50 | 100 | 74.3 | 66.8 | 49 | 67.5 | 31.5 |
| R2UR-7563 | 75/63 | 100 | 74.3 | 83.2 | 61.9 | 68 | 31.5 |
| R2UR-9032 | 90/32 | 120.2 | 89.3 | 42.6 | 31.1 | 75 | 35 |
| R2UR-9063 | 90/63 | 120.2 | 89.3 | 83.2 | 61.9 | 76 | 35 |
| R2UR-9075 | 90/75 | 120.2 | 89.3 | 100 | 74.3 | 77 | 35 |
| R2UR-11075 | 110/75 | 147.1 | 109.4 | 100 | 74.3 | 87.5 | 40 |
| R2UR-11090 | 110/90 | 147.1 | 109.4 | 120.2 | 89.3 | 87.5 | 40 |
