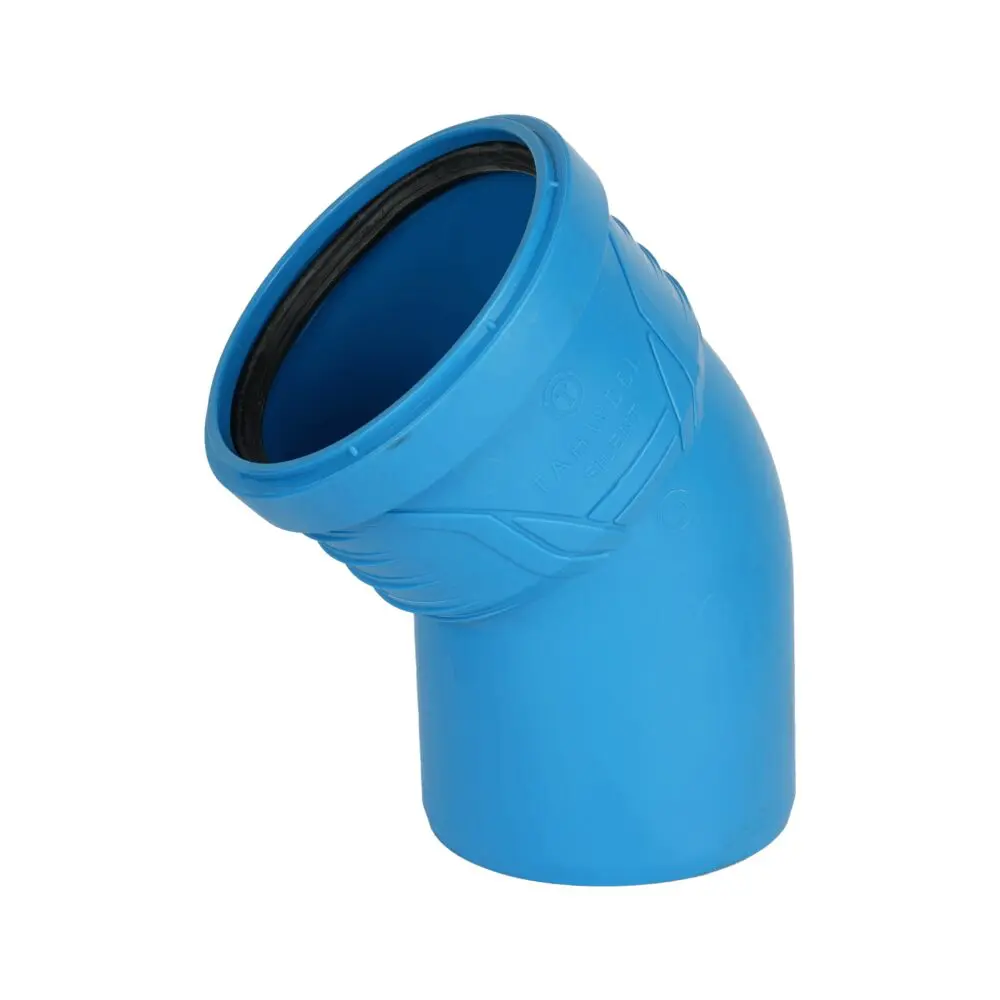

| SILENT ELBOW 45° | ||||||

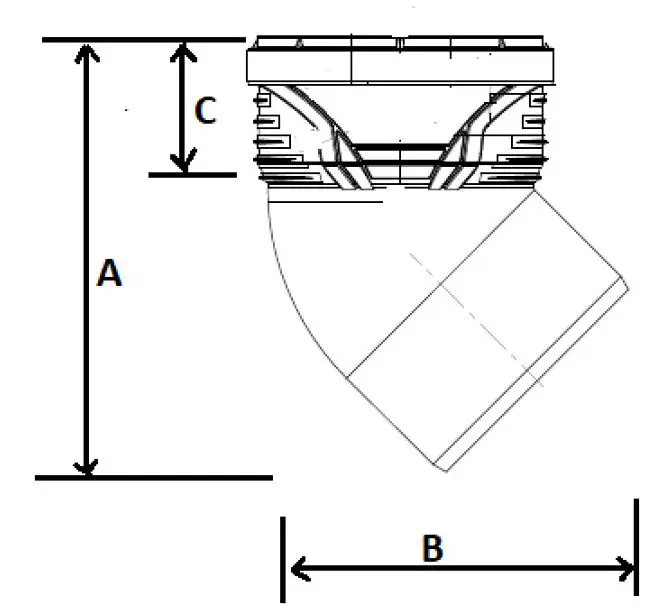

| Size(inches) | Ordering Code | Dimensions | Socket Wall Thickness | Body Wall Thickness | ||
| A(mm) | B(mm) | C(mm) | (mm) | (mm) | ||
| 50 mm | SPE3-50 | 128.72 | 95.5 | 45.7 | 2 | 2.2 |
| 75 mm | SPE3-75 | 156.44 | 125.1 | 52.2 | 2.5 | 2.7 |
| 110 mm | SPE3-110 | 203.5 | 169.54 | 65.3 | 3.5 | 3.5 |
| 160 mm | SPE3-160 | 262.09 | 231.28 | 75.5 | 5 | 5 |
