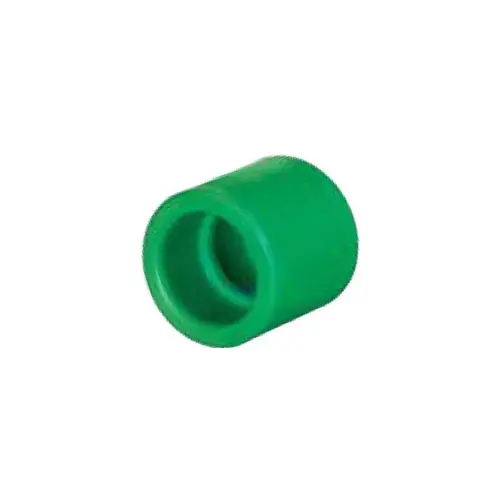

| Socket ACC. To DIN 15874 |
|||||
| Art.No | Size | D | d | L | Z |
| In mm | In mm | In mm | In mm | ||
| S1-20 | Ø20 mm | 29.2 | 19.2 | 32 | 14.5 |
| S1-25 | Ø25 mm | 34.3 | 24.2 | 35 | 16 |
| S1-32 | Ø32 mm | 43,3 | 31.1 | 40.5 | 18 |
| S1-40 | Ø40 mm | 52,6 | 39 | 47 | 21 |
| S1-50 | Ø50 mm | 66.8 | 49 | 53 | 24 |
| S1-63 | Ø63 mm | 83.2 | 61.9 | 61 | 28 |
| S1-75 | Ø75 mm | 100 | 74.3 | 68 | 31.5 |
| S1-90 | Ø90 mm | 120.2 | 89.3 | 76 | 35 |
| S1-110 | Ø110 mm | 147.1 | 109.4 | 88 | 40 |
