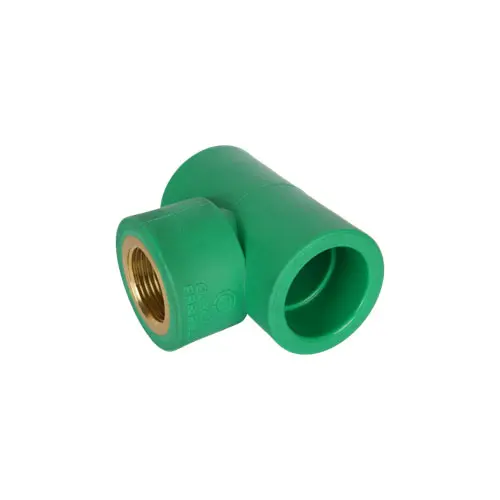

| Transition Female Tee ACC. To DIN 15874 |
||||||||
| Art.No | Size | d | D | I | I1 | Z | Z1 | SW |
| In mm | In mm | In mm | In mm | In mm | In mm | In mm | ||
| T3-201/2 | Ø20 * 1/2″x20 | 19.5 | 29 | 28 | 34 | 14 | 20 | 36 |
| T3-251/2 | Ø25 * 1/2″x25 | 24.5 | 34 | 32 | 38 | 16 | 24 | 36 |
| T3-253/4 | Ø25 * 3/4″x25 | 24.5 | 34 | 32 | 40 | 16 | 25 | 44 |
| T3-321/2 | Ø32 * 1/2″x32 | 31.5 | 43 | 38 | 45 | 20 | 30 | 44 |
| T3-323/4 | Ø32 * 3/4″x32 | 31.5 | 43 | 38 | 45 | 20 | 30 | 44 |
| T3-321 | Ø32 * 1″x32 | 31.5 | 43 | 38 | 48 | 20 | 30 | 51 |
